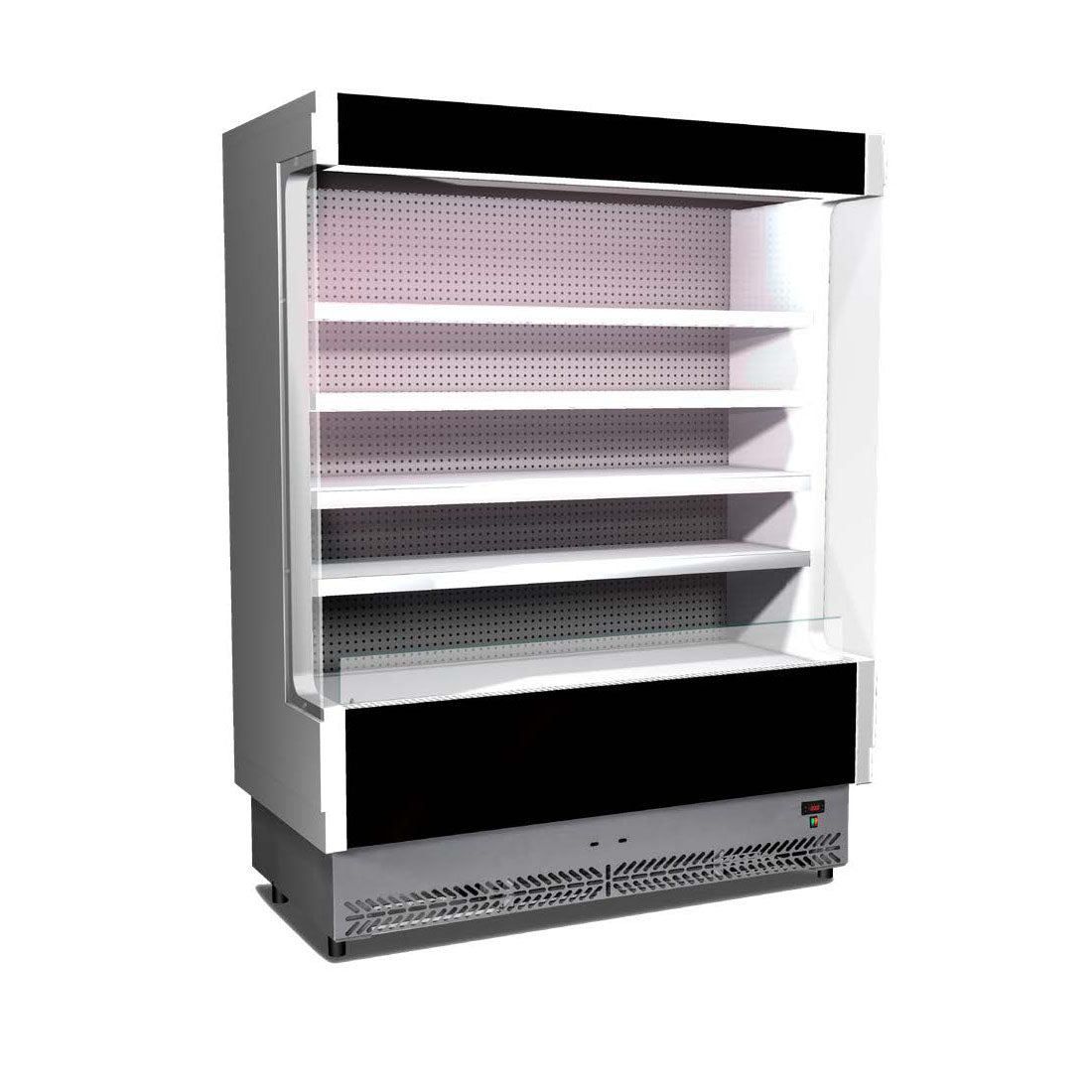

Tecnodom Open Chiller with 4 Shelves TDV80-CA-125

The Tecnodom TDV80-CA-125 is a full-height open display chiller built for high-volume self-serve merchandising in supermarkets, convenience stores, delis and food halls. Standing 2130mm tall with four adjustable shelves and a 2.54 m² display surface, it presents chilled drinks, dairy, deli and packaged product across an open air-curtain front at a 0 to 2°C holding temperature, with an auto-rolling night blind to cut energy after hours.

Why operators choose the TDV80-CA-125

• Full-height multideck — 2130mm tall with 4 shelves and 2.54 m² of display for maximum selling space per metre.
• 0 to 2°C range — colder than the EVO grab-and-go units, holding fresh chilled product at safe temperature.
• Open air-curtain front — self-serve access with no doors keeps customers moving at peak trade.
• Auto-rolling night blind — pull down after hours to retain temperature and reduce running costs.
• 4 height-adjustable shelves — white-painted steel shelves reconfigure for bottles, tubs and packs.
• Climate Class 4 — certified to perform in a 30°C / 60% RH ambient, suited to demanding retail floors.
• Ventilated refrigeration with electric defrost — even cooling across the full height with reliable defrost.
• 2-year parts & labour warranty — commercial-grade cover for continuous daily service.

Specifications

Venue suitability

The TDV80-CA-125 suits supermarkets, convenience stores, delis, bakeries and food halls that need a tall, high-capacity open chiller for chilled drinks, dairy, deli lines and packaged product. Its full 2130mm height and four shelves pack far more display into the floor space than the lower EVO grab-and-go cabinets, making it the choice where vertical selling area and colder 0 to 2°C running matter most.

Browse more commercial open display fridges or explore the full Tecnodom range.

Installation & delivery

The TDV80-CA-125 is self-contained and runs on a 240V supply drawing 4070W; it is supplied with two plugs (15A and 10A), so allow for suitable outlets when planning the fit-out — no plumbing or remote condenser is required. It is rated Climate Class 4 (30°C ambient, 60% RH); as an open air-curtain unit, keep it clear of doorways, direct heat and strong air movement, and use the night blind after hours to hold temperature. Packed dimensions are 1440 × 880 × 2210 mm. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 2 years parts & labour; see our warranty information for full details.

Frequently asked questions

Q: What is the Tecnodom TDV80-CA-125 used for? A: The TDV80-CA-125 is a full-height open display chiller for high-volume self-serve merchandising of chilled drinks, dairy, deli and packaged product in supermarkets, convenience stores, delis and food halls.

Q: What temperature does the TDV80-CA-125 hold? A: It runs a 0 to 2°C temperature range and is rated Climate Class 4 (30°C ambient, 60% RH), suited to fresh chilled product.

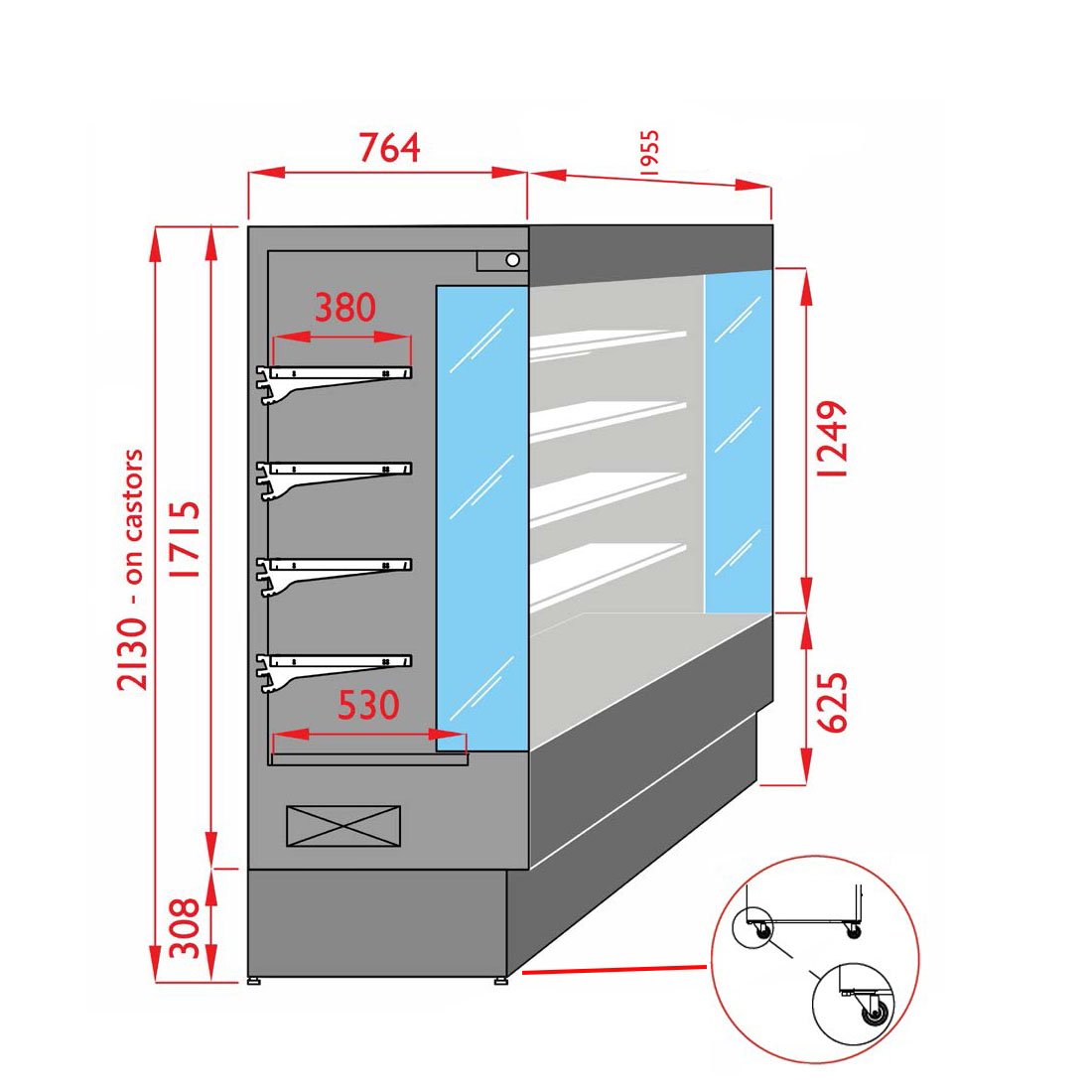

Q: What are the dimensions of the TDV80-CA-125? A: It measures 1330 × 765 × 2130 mm (W×D×H), including the 40mm-thick side walls, and weighs 210 kg net.

Q: How much can the TDV80-CA-125 display? A: It provides a 2.54 m² display surface across 4 height-adjustable shelves plus the base, with upper internal lighting.

Q: What power supply does the TDV80-CA-125 need? A: It runs on 240V at 4070W and is supplied with two plugs (15A and 10A), so plan for suitable outlets during fit-out.

Q: Does the TDV80-CA-125 ship Australia-wide? A: Yes. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide.
