Tecondom Stromboli Supermarket Remote Display Fridge with Door TDST90-CA-187BD

The Tecnodom TDST90-CA-187BD is a remote supermarket multideck display fridge fronted by 3 hinged glass doors, built to merchandise chilled drinks, dairy, deli lines and grab-and-go in supermarkets, convenience stores and large retail outlets. At 1975mm wide it runs at 0 to +2°C on a remote condensing unit and holds 3.58m³ of chilled display (4.34m² of shelf face) behind 30mm tempered double-glazing, lit by LED at the canopy and on every shelf.

Why operators choose the TDST90-CA-187BD

• 1975mm merchandising width — the CA-187 footprint fills a 1.9m run of chilled display without wasting floor space.

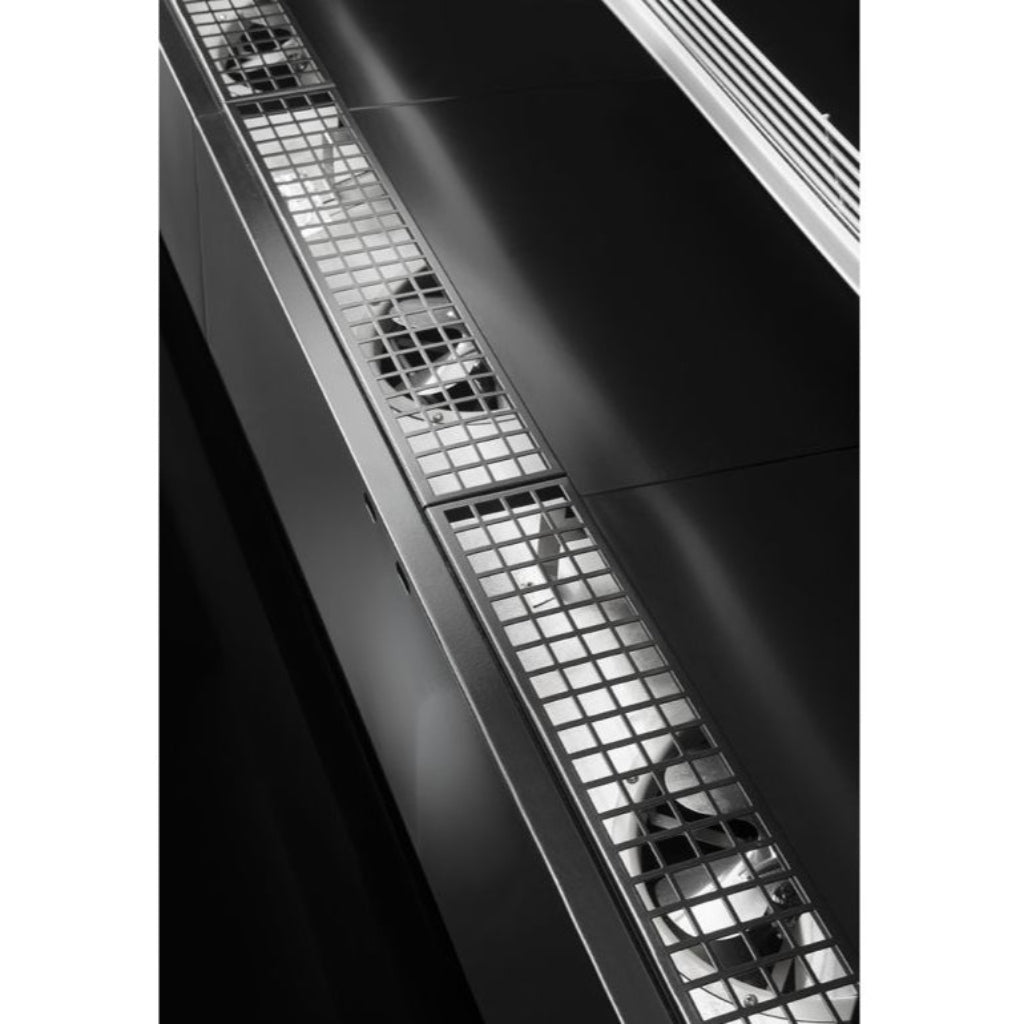

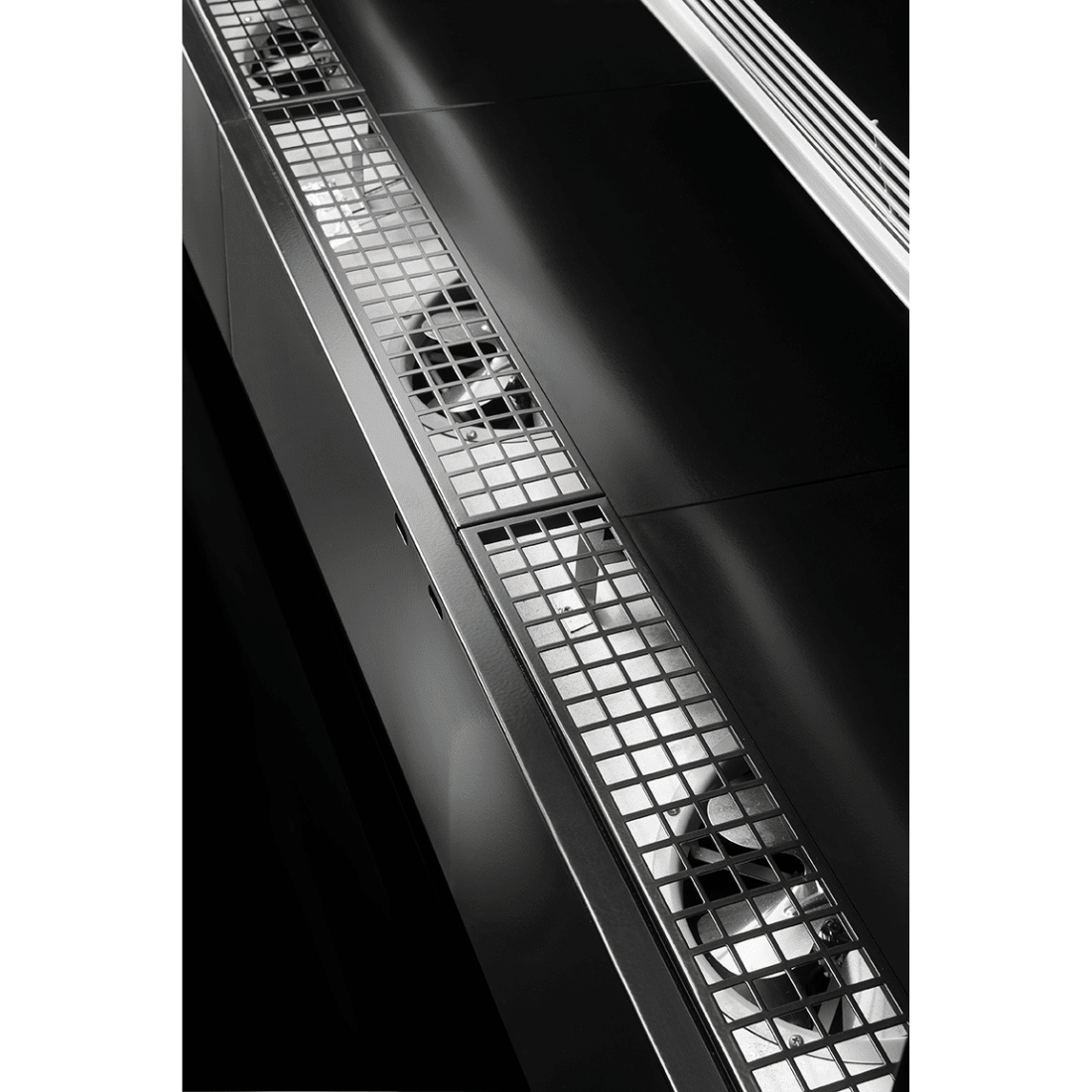

• 0 to +2°C fan-forced cooling — holds fresh dairy, deli and drinks at safe chilled temperatures right across the case.
• Remote condensing unit — the compressor sits back-of-house, cutting heat, noise and running temperature on the shop floor.
• 3 hinged glass doors — sealed cold retention for lower running cost and steadier temperature than an open front.
• Double-glazed doors — clear, condensation-resistant viewing that keeps product front-of-mind while the cold stays in.
• LED canopy and shelf lighting — lifts product colour on every tier for stronger visual merchandising.
• 3.58m³ net display volume — 4.34m² of angled, 434mm-deep shelving for high-density facing.
• Colorbond body on four legs — durable, easy-clean and floor-standing for a quick set-and-level install.

Specifications

Venue suitability

The TDST90-CA-187BD suits supermarkets, grocers, convenience stores, delis and large retail outlets that run chilled dairy, drinks, deli and grab-and-go on a remote refrigeration system. It sits in the glass-door TDST90 line alongside the CA-125, CA-250, CA-375 door models (2-door, 4-door, 6-door), so you can scale door count to your aisle; if you want open-front, reach-in merchandising instead, see the night-blind version, the TDST90-CA-187B.

Browse more supermarket fridges & freezers or explore the full Tecnodom range.

Installation & delivery

Because this is a remote model, the display case connects to a separate remote condensing unit that must be sized, run and commissioned by a licensed refrigeration mechanic — it is not a plug-in, self-contained fridge. The case itself runs on a standard 240V, 1.12kW/10A single-phase supply for fans, lighting, controls and electric defrost. It is rated for an ambient of up to 30°C at 55% RH, so keep it clear of direct sun, doorways and HVAC drafts for stable temperatures. It ships on four legs at 1000 × 2090 × 2210 mm packed (W×D×H), 300 kg net. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 1 year parts & labour plus 1 year parts only, with product registration within 14 days of invoice; see our warranty information for full details.

Frequently asked questions

Q: What does the BD in TDST90-CA-187BD mean? A: BD is the glass-door build: this model carries 3 hinged glass doors for sealed cold retention. The plain “B” version, the TDST90-CA-187B, is the open-front night-blind version instead.

Q: Is the TDST90-CA-187BD self-contained or remote? A: It is a remote model. The display case connects to a separate remote condensing unit that a licensed refrigeration mechanic sizes and installs — it does not have a built-in compressor.

Q: What temperature does the TDST90-CA-187BD hold? A: It runs at 0 to +2°C with fan-forced cooling and electric defrost, suited to fresh dairy, deli and chilled drinks.

Q: How much display does the TDST90-CA-187BD hold? A: It offers 3.58 m³ of net display volume and 4.34 m² of shelf face on 434mm-deep shelves at 1975mm wide.

Q: What power supply does the TDST90-CA-187BD need? A: The case runs on 240V, 1.12kW/10A single-phase for fans, lights, controls and defrost; refrigeration is supplied by the separate remote condensing unit.

Q: Does the TDST90-CA-187BD ship Australia-wide? A: Yes. It is dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide.
