Thermaster 1800 mm Chilled Curved Glass Display CG180FA-2XB

The Thermaster CG180FA-2XB is a 1800 mm wide refrigerated curved glass food display with three display levels, recorded at 2 to 8 degrees C with a recorded 540 L gross volume. It uses Danfoss compressors and a triple glazed front with heated wire filaments to stop condensation forming over the product.

Why operators choose the CG180FA-2XB

• 2 to 8 degrees C - the recorded operating band for chilled display of open and packaged product.

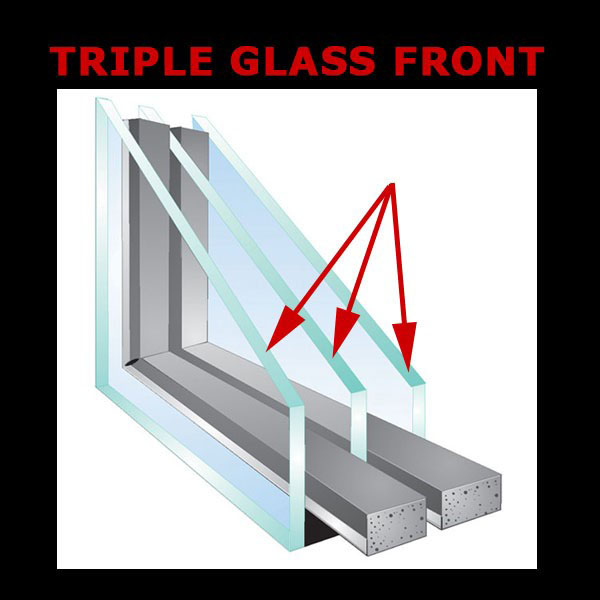

• Triple glazed with heated filaments - condensation on the glass hides what you are selling, and heated wire filaments in the glass are what stop it forming.
• Rated to 40 degrees C ambient at 60% RH - the recorded ambient limit - check it against the room the cabinet will actually stand in, because a cabinet rated below its room will not hold temperature.
• Danfoss compressors and German EBM-Pabst fans - the recorded componentry, which is what a service agent will be sourcing parts against.
• Sliding rear glass doors - served from behind the counter, with lighting over each level.
• Self evaporating drainage - no condensate tray to empty during service.
• 100 mm installation clearance - the supplier requires 100 mm clearance and that all vents are left clear - plan the cabinet position around it.

Specifications

What the supplier record does not settle

The supplier records a 540 L gross volume and a 540 L net capacity. Gross and net cannot be the same figure, so the 540 L is published as the gross volume only and no net capacity is stated.

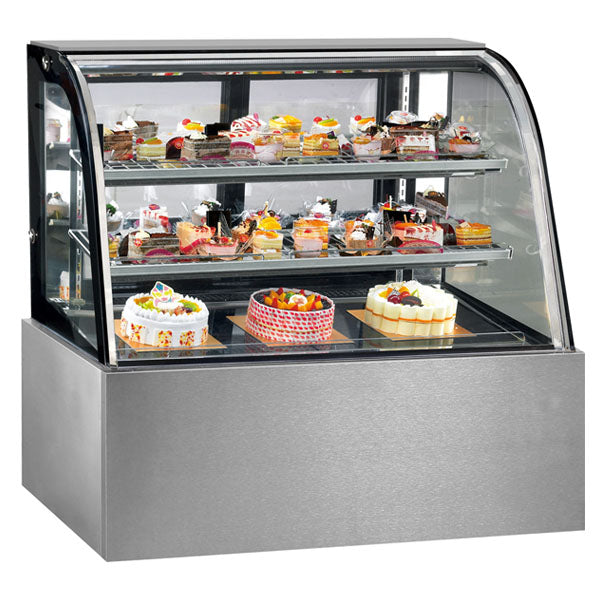

The supplier supplies the same photograph for this product and for CG090FA-2XB, which are a cabinet of a different width. Order to the recorded figures in the table above rather than to the image.

Venue suitability

Suited to cafes, bakeries, delis, patisseries and food halls displaying chilled product through service.

See the full Thermaster range.

Installation & delivery

Connects to a standard 240 V single phase supply at a recorded 240V; 1250W. Have an electrician confirm the circuit before delivery. The supplier requires 100 mm clearance for installation and that all vents are left clear, so confirm the position before delivery. This is a heavy unit - check access, doorways and floor loading on the delivery path. Delivery is to a ground-floor loading point unless other arrangements are made at the time of ordering.

Warranty terms vary by product - see our warranty information page for full details.

Frequently asked questions

Q: What temperature does it hold?

The supplier records 2 to 8 degrees C with very high humidity, which suits open chilled display.

Q: How much does it hold?

The supplier records a 540 L gross volume and a 540 L net capacity. Gross and net cannot be the same figure, so the 540 L is published as the gross volume only and no net capacity is stated.

Q: What ambient conditions is it rated to?

The supplier records 40 degrees C ambient at 60% RH. That is the limit the cabinet is designed to hold temperature in - if your room runs hotter or more humid than that, the cabinet will struggle, so measure the room rather than assuming.

Q: What clearance does it need?

The supplier requires 100 mm clearance for installation and that all vents are left clear. Plan the position before delivery, because a cabinet boxed in against a wall or a counter return will not shed heat.

Q: What warranty applies?

The supplier records 3 years full parts and labour, subject to end of 1st and 2nd year service and inspection, and subject to the terms in the warranty section of its terms and conditions. The service condition is part of the term - miss the inspections and the cover is affected, so book them in.

Q: What power supply does it need?

The supplier records 240V; 1250W, a standard single phase supply. Have an electrician confirm the circuit before delivery.
