Thermaster Supermarket Combined Freezer ZCDTD125

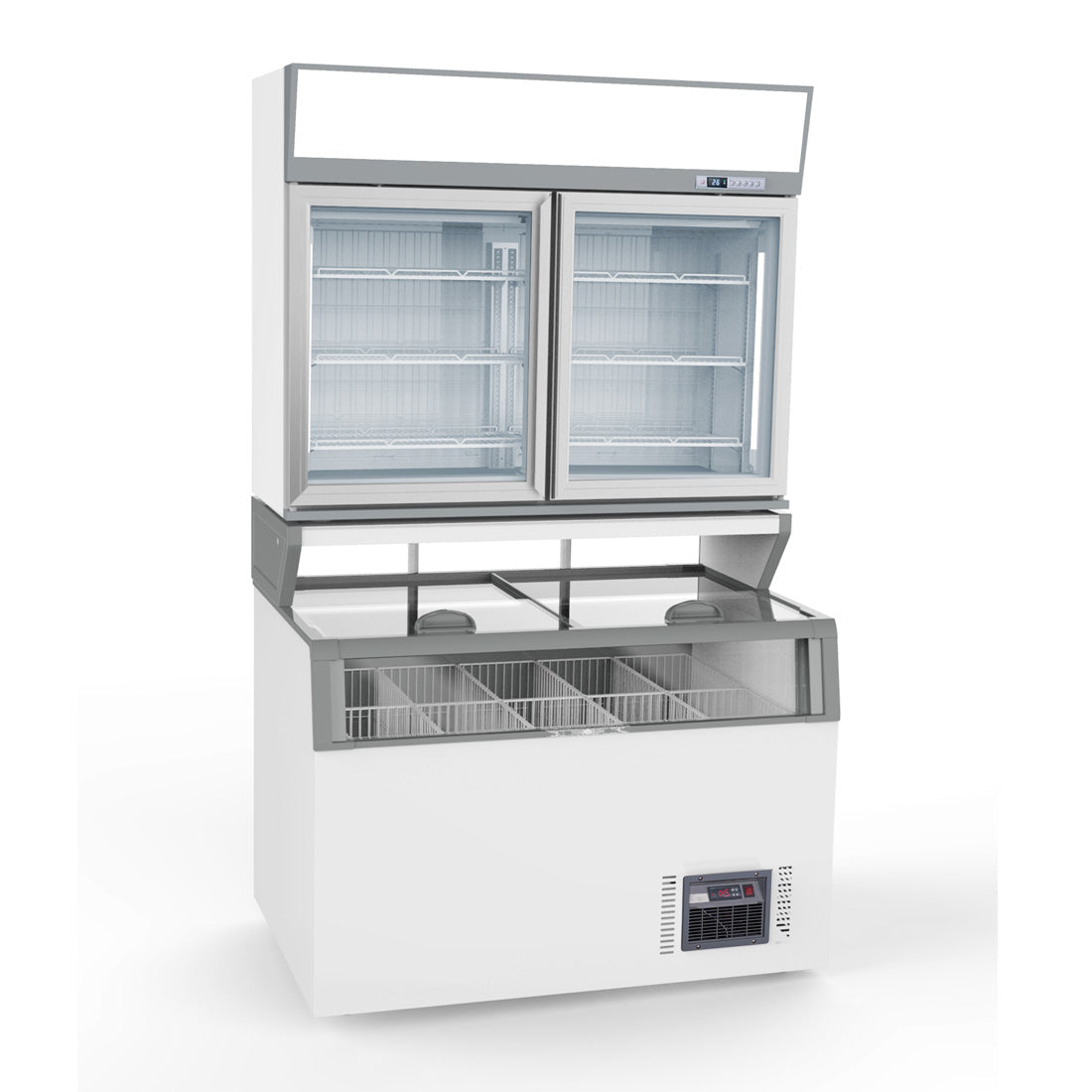

The Thermaster ZCDTD125 is a combined supermarket freezer that pairs a top hinged glass-door display freezer with a bottom sliding-glass-lid chest freezer in a single upright footprint, built for supermarkets, convenience stores, service stations and delis that need frozen display and frozen bulk storage without giving up floor space. The top section runs fan cooling behind triple-glazed self-closing glass doors, while the bottom chest section uses a static cooling system with auto-defrost — 688 litres of gross freezer volume (top 218 L, bottom 470 L) on a 1254 mm-wide floor plan (233 kg net).

Why operators choose the ZCDTD125

• Two freezers in one footprint — a top display freezer over a bottom chest freezer saves floor space in tight stores.
• Top hinged glass-door display — triple-glazed self-closing doors with heat film keep frozen product visible and merchandised.
• Bottom sliding-lid chest freezer — Low-E tempered-glass lids over a static-cooled, auto-defrost chest for bulk and ice-cream storage.
• R290 natural refrigerant — low-GWP hydrocarbon refrigerant.
• LED lighting & illuminated top canopy — brightens the display and adds advertising space above the doors.
• Electronic digital temperature control/display — simple, precise operation.
• Auto-defrost — reduces manual maintenance on the chest section.
• 4-year warranty — 2 years parts & labour plus 2 years parts with registration.

Specifications

Venue suitability

The ZCDTD125 suits supermarkets, convenience stores, service stations, delis and ice-cream retailers that need both frozen display and frozen bulk storage but have limited floor space. The top glass-door section merchandises frozen grab-and-go lines at eye level while the bottom chest section holds backup stock and tubs below.

Browse the full supermarket fridges & freezers range, or see more from Thermaster.

Installation & delivery

The ZCDTD125 ships in two separate packages and each section connects to its own standard 10 A outlet (top 550 W, bottom 285 W at 240 V), so allow two power points at the install location; the refrigeration is self-contained, with no plumbing or remote condenser required. Leave clearance around the unit for airflow and check the packed size of 1384 × 994 × 2360 mm against doorways and lift access before delivery — note that installation and assembly are not included. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. It is covered by 2 years parts & labour plus 2 years parts only with product registration within 14 days of invoice; see our warranty information for full details.

Frequently asked questions

Q: What is the ZCDTD125? A: A combined supermarket freezer — a top hinged glass-door display freezer over a bottom sliding-lid chest freezer, in one upright footprint.

Q: How much can it hold? A: 688 litres of gross freezer volume — 218 L in the top display section and 470 L in the bottom chest section.

Q: What refrigerant does it use? A: R290, a low-GWP natural hydrocarbon refrigerant.

Q: How is each section cooled? A: The top display section uses fan cooling; the bottom chest section uses a static cooling system with auto-defrost.

Q: What power supply does it need? A: Two standard 10 A outlets at 240 V — 550 W for the top section and 285 W for the bottom.

Q: What warranty is included? A: 2 years parts & labour, plus a further 2 years parts only when registered within 14 days of invoice.
