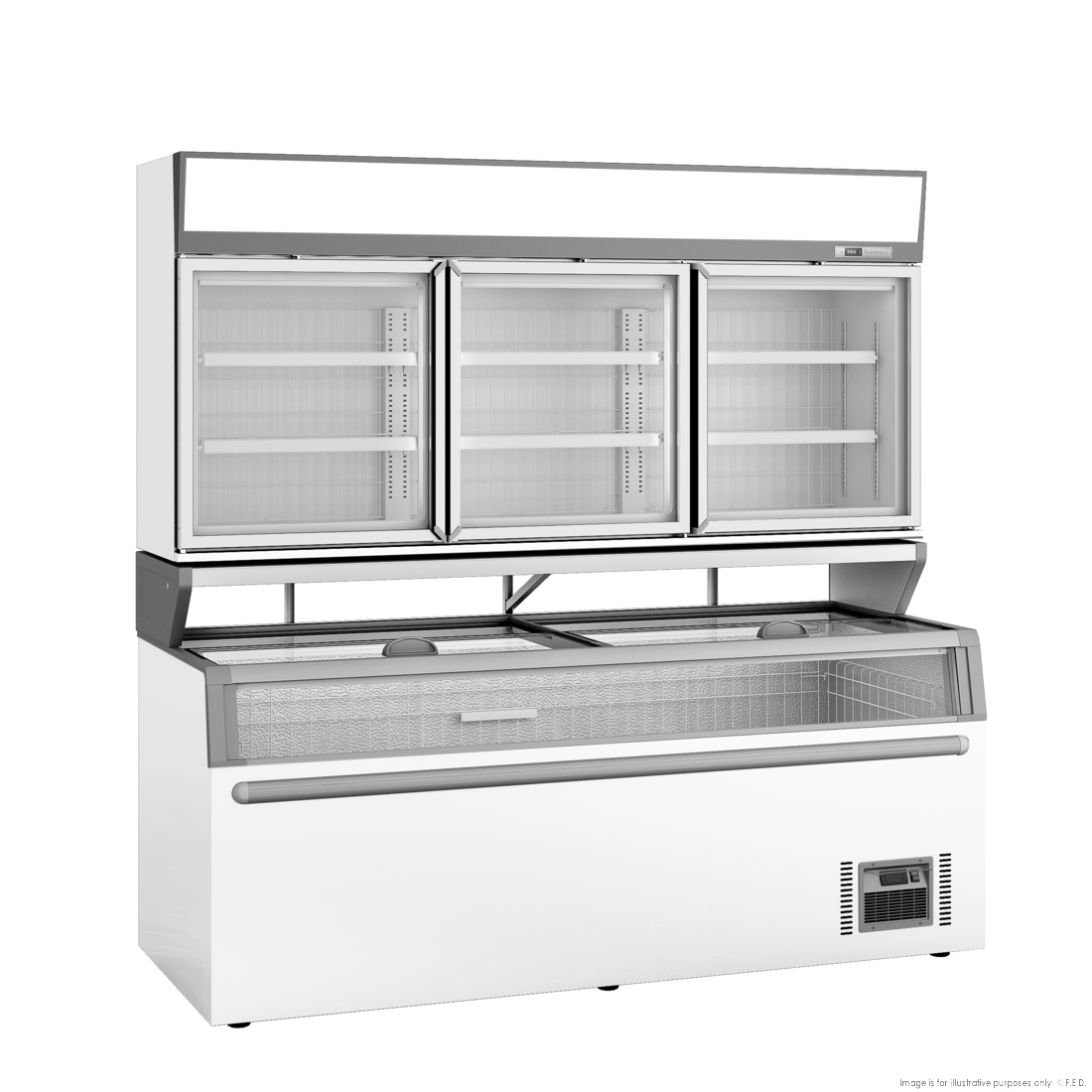

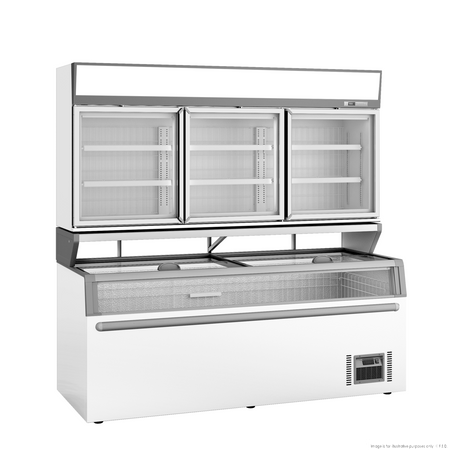

Thermaster Supermarket Combined Freezer ZCDTD210

The Thermaster ZCDTD210 is a wide-format combined supermarket freezer that pairs a top hinged glass-door display freezer with a bottom sliding-glass-lid chest freezer in one upright cabinet, built for supermarkets, service stations, convenience stores and ice-cream retailers that need high-capacity frozen display and frozen bulk storage side by side. The top section runs fan cooling behind triple-glazed self-closing glass doors, while the bottom chest section uses a static cooling system with auto-defrost — 1283 litres of gross freezer volume (top 383 L, bottom 900 L) across a 2104 mm-wide floor plan (346 kg net).

Why operators choose the ZCDTD210

• Two freezers in one cabinet — a top display freezer over a bottom chest freezer combines merchandising and bulk storage.
• High 1283 L gross volume — 383 L top display plus 900 L bottom chest for high-turnover sites.
• Top hinged glass-door display — triple-glazed self-closing doors with heat film keep frozen product visible.
• Bottom sliding-lid chest freezer — Low-E tempered-glass lids over a static-cooled, auto-defrost chest, ideal for ice-cream and bulk stock.
• R290 natural refrigerant — low-GWP hydrocarbon refrigerant.
• LED lighting & illuminated top canopy — brightens the display and adds advertising space.
• Electronic digital temperature control/display — precise, simple operation.
• 4-year warranty — 2 years parts & labour plus 2 years parts with registration.

Specifications

Venue suitability

The ZCDTD210 suits larger supermarkets, service stations, convenience stores and ice-cream retailers that turn over high volumes of frozen stock and need both eye-level display and deep bulk storage in one unit. Its wide 2104 mm cabinet delivers more display frontage and chest capacity than the compact ZCDTD125.

Browse the full supermarket fridges & freezers range, or see more from Thermaster.

Installation & delivery

The ZCDTD210 ships in two separate packages and each section connects to its own standard 10 A outlet (top 820 W, bottom 500 W at 240 V), so allow two power points at the install location; the refrigeration is self-contained, with no plumbing or remote condenser required. Leave clearance around the unit for airflow and check the packed size of 2234 × 994 × 2360 mm — and the 2104 mm cabinet width — against doorways and lift access before delivery, as installation and assembly are not included. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. It is covered by 2 years parts & labour plus 2 years parts only with product registration within 14 days of invoice; see our warranty information for full details.

Frequently asked questions

Q: What is the ZCDTD210? A: A wide-format combined supermarket freezer — a top hinged glass-door display freezer over a bottom sliding-lid chest freezer in one cabinet.

Q: How much can it hold? A: 1283 litres of gross freezer volume — 383 L in the top display section and 900 L in the bottom chest section.

Q: What refrigerant does it use? A: R290, a low-GWP natural hydrocarbon refrigerant.

Q: How is each section cooled? A: The top display section uses fan cooling; the bottom chest section uses a static cooling system with auto-defrost.

Q: What power supply does it need? A: Two standard 10 A outlets at 240 V — 820 W for the top section and 500 W for the bottom.

Q: What warranty is included? A: 2 years parts & labour, plus a further 2 years parts only when registered within 14 days of invoice.
