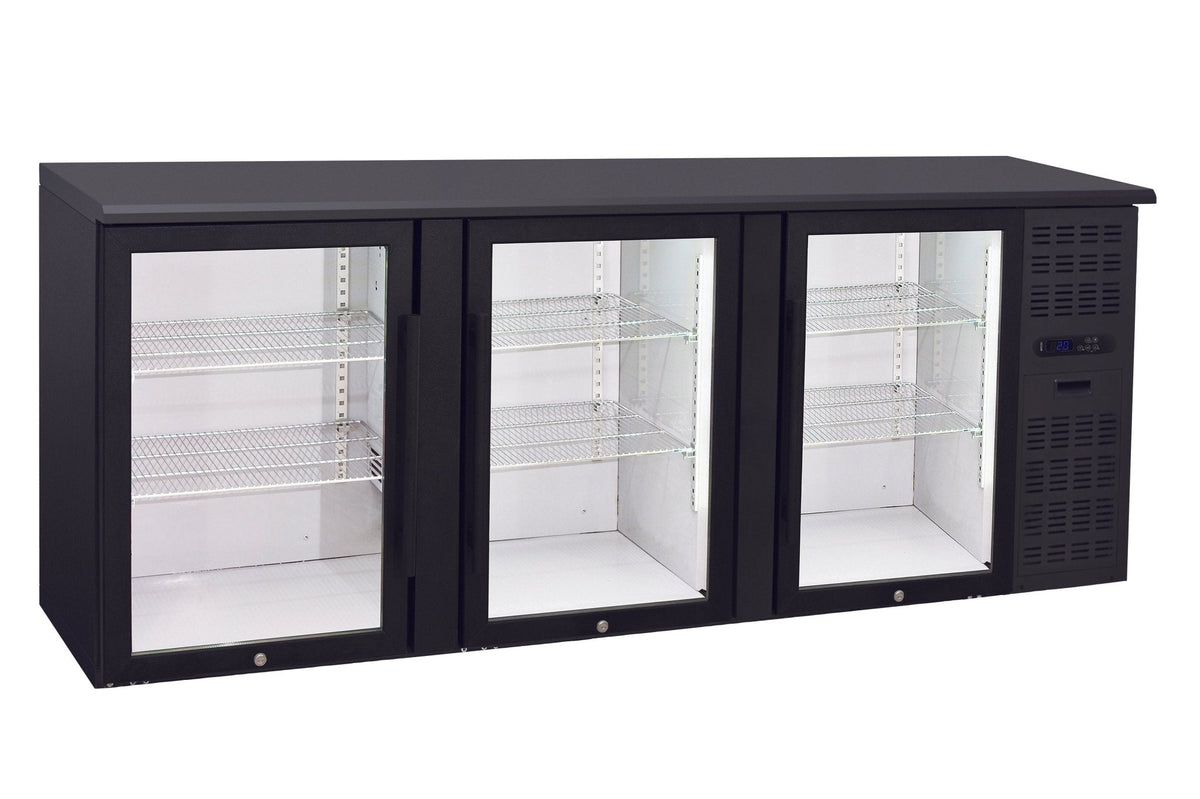

Anvil BBZ0300 3 Door Glass Back Bar Fridge 500L

The Anvil BBZ0300 is a three-door glass back bar fridge holding 500 litres across a 2085 mm run of bar. It holds 2 to 8 degrees C and is rated to keep doing it in a 38 degrees C room, which is the figure that matters behind a bar in summer with the glasswasher running. The internal space is 740 mm high with no bottom step, so the base row takes full-height bottles rather than being wasted on a lip.

Why operators choose the BBZ0300

• Three doors, 500 L, 2085 mm wide — works out at 0.24 litres per millimetre of bar frontage. Across this range that figure rises with door count — 0.22 on the two-door, 0.24 on the three and 0.26 on the four — so a wider cabinet buys proportionally more than its extra width suggests
• Drops to 860 mm on legs — it ships on removable castors at 900 mm high. Swapping to legs takes it to 860 mm, which is what lets it sit under a standard bar top instead of standing proud of it. Confirm your own bar height before ordering
• Full door height with no bottom step — the internal space is 740 mm high across the whole cabinet, so tall bottles and 2 L cartons stand upright on the base rather than losing a shelf to a step
• Self-closing, fully reversible doors with locks fitted as standard — the doors pull themselves shut behind a busy bar shift, hinge either way to suit the run, and lock without a retrofit
• Two anti-tipping shelves per door — the shelves will not pitch forward when a full row is drawn off the front, which is the usual failure on a heavily loaded bar fridge
• Serviceable from the front — the cooling system is fully ventilated through an accessible condenser filter, so the filter can be pulled and cleaned without drawing the cabinet out of the bar run
• Runs on a standard single-phase outlet — 240 V, 0.373 kW, roughly 1.6 A — well inside the recorded 10 A supply, so no dedicated circuit or switchboard work is implied

Specifications

Venue suitability

Built for the back bar — pubs, clubs, hotels, restaurants and function rooms where stock has to be visible, reachable and cold through a long service. The 2085 mm width and 535 mm depth are the two numbers to measure against your bar run; the 38 degrees C ambient rating is what lets it hold temperature in a room that is already warm.

Compare it across the full commercial bar fridges range, see the rest of the Anvil range, or browse all commercial fridges.

Installation & delivery

Allow 2085 mm of width and 535 mm of depth, plus clearance for the doors to swing. It arrives on removable castors at 900 mm high; fitting legs instead brings it to 860 mm if it has to tuck under a bar top. Power is a standard 240 V single-phase outlet at 0.373 kW. The condenser filter is reachable from the front, so routine cleaning does not mean pulling the cabinet out. Packed it measures 2135 x 590 x 1045 mm and weighs 121 kg, so plan the delivery path and the lift. Dispatched Australia-wide.

Also available as the BBZ0200 in two doors (315 L across 1460 mm) and the BBZ0400 in four doors (670 L across 2540 mm).

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: Will it fit under a standard bar top?

It stands 900 mm high on the castors it ships with. Legs are available that bring it down to 860 mm, which is what makes an under-bar fit possible. Bar heights vary, so measure your own opening against 860 mm before ordering rather than assuming it clears.

Q: How cold does it hold and in what sort of room?

2 to 8 degrees C, with a 38 degrees C ambient rating. That ambient figure is the useful one: it is the room temperature the cabinet is rated to keep working in, which behind a bar in summer is doing real work.

Q: What is the difference between the two, three and four door models?

Door count and width only - the cabinet depth, height, temperature range, ambient rating, refrigerant, shelving and warranty are identical across all three. Capacity per millimetre of bar frontage does improve as the cabinet gets wider, from 0.22 L/mm on the two-door to 0.26 L/mm on the four-door.

Q: Does it need a dedicated circuit?

No. It draws 0.373 kW at 240 V, roughly 1.6 A, against a recorded 10 A supply. It runs from a standard single-phase outlet. As with any refrigeration, we would not have it sharing a circuit with other heavy loads.

Q: What refrigerant does it use?

R290. It is a hydrocarbon refrigerant with a very low global warming potential, which is why it has largely replaced older gases in cabinets this size. Your refrigeration mechanic should be told which gas is in the unit before any service work.

Q: Can the doors be hinged the other way, and do they lock?

Yes to both. The glass doors are fully reversible and self-closing, and locks are fitted as standard rather than being an option.

Q: What does the warranty cover?

24 months parts and labour. Full terms are on our warranty information page.
