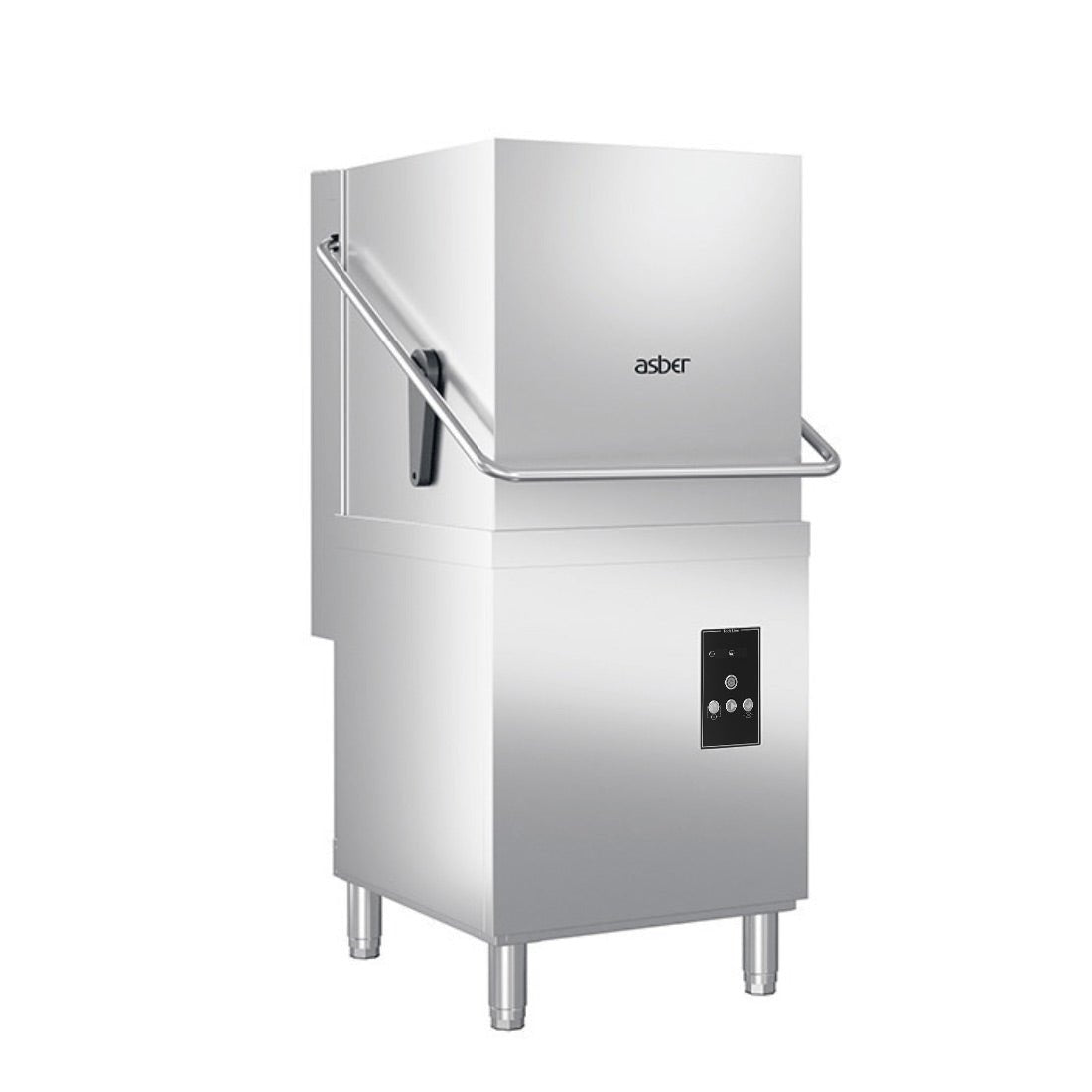

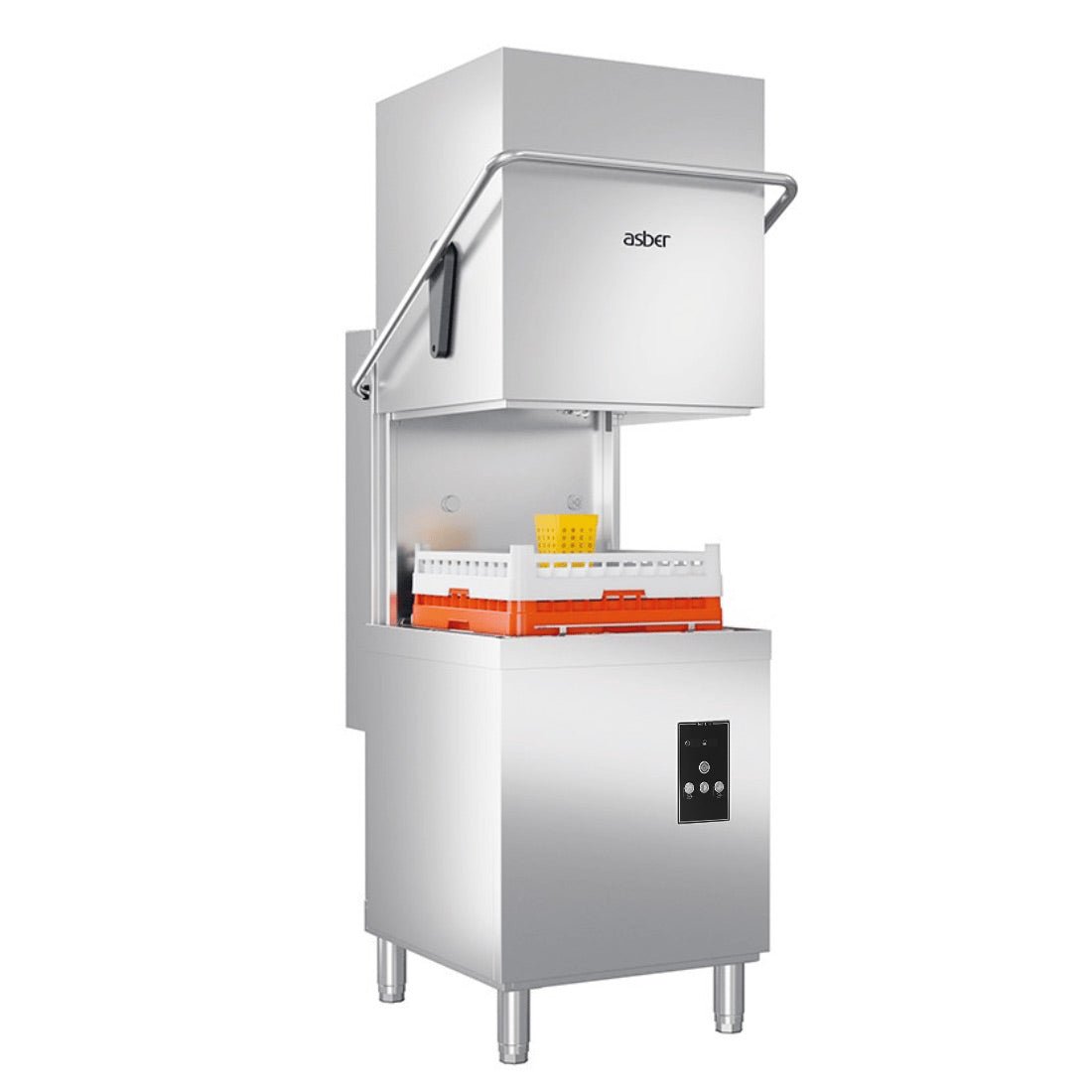

Asber Easy Line PASS-THROUGH Dishwashers GEX-H500BDD

The Asber Easy Line GEX-H500BDD is a pass-through (hood-type) dishwasher with 90 and 180-second wash cycles, a 33 L wash tank and a 7 L rinse boiler. It runs on 240 V from a 15 amp outlet and needs a hot water connection.

Why operators choose the GEX-H500BDD

• Hot water connection required — the machine is designed to be fed hot water, so make sure there is a hot supply at the dishwasher position. Without it, cycle times and rinse temperatures suffer
• Two wash cycles, 90 and 180 seconds, plus a continuous mode that runs until you stop it (up to 600 seconds) for heavily soiled pots and trays
• Wash at 60 °C, rinse at 85 °C, with safety thermostats in both the tank and the boiler — the 85 °C final rinse is what sanitises
• Upper and lower stainless steel wash and rinse arms — ware is washed from both sides in one pass
• 2.6 L of water per rinse, a built-in rinse-aid dispenser, an anti-backflow valve and adjustable boiler heating power
• Three baskets supplied: a plate basket (CP-16/18), a CT-10 basket and a cutlery basket (CU-7)
• 2 years parts and labour

Specifications

Venue suitability

A pass-through dishwasher suits restaurants, hotels, clubs, function centres and busy cafes where an undercounter machine can no longer keep up. Racks slide in from a dirty-side bench, the hood comes down, and they slide out to a clean-side bench, so the washing area is laid out around it rather than under a counter.

Compare the Asber Tech Line GE-H500BDD, or browse the Asber range and our pass-through dishwashers.

Installation & delivery

Needs a 15 amp outlet — 3.6 kW at 240 V is about 15 amps, so a standard 10 amp socket will not do; ideally a dedicated circuit. Needs a hot water supply and a plumber to connect the water and the waste. The supplier's specification does not list a drain pump, so confirm the drainage arrangement with us before installation. 630 x 750 mm footprint, 1482 mm high, net weight 61 kg. The recorded height does not say whether the hood is up or down, and the hood must lift clear above it — check the ceiling height and any shelving above.

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: Does it need a hot water connection?

Yes. The supplier states a hot water connection is required. Make sure there is a hot water supply at the dishwasher position before delivery.

Q: What power does it need?

A 15 amp outlet. It is rated at 3.6 kW on 240 V, which draws about 15 amps - too much for a standard 10 amp socket. A dedicated circuit is best.

Q: How long is a cycle?

Two programs: 90 seconds and 180 seconds. There is also a continuous mode that keeps washing until you stop it, up to 600 seconds, for heavily soiled ware.

Q: Which baskets come with it?

Three: a CP-16/18 plate basket, a CT-10 basket and a CU-7 cutlery basket.

Q: What warranty does it carry?

2 years parts and labour, as the supplier records it. See our warranty information page for the general terms.
