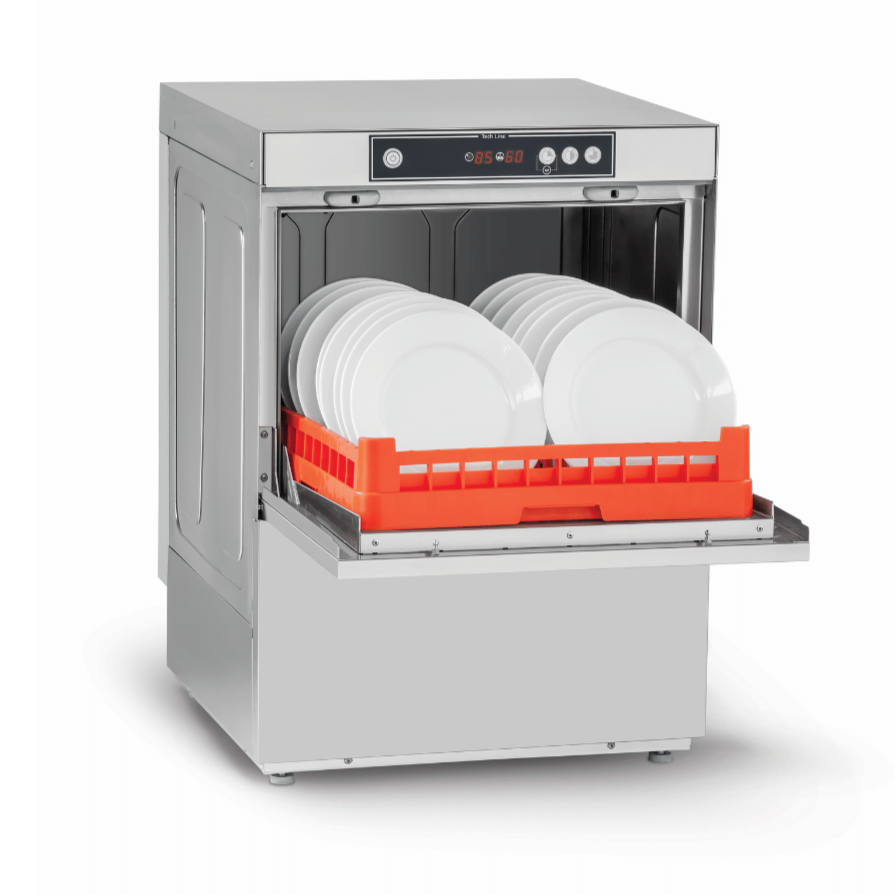

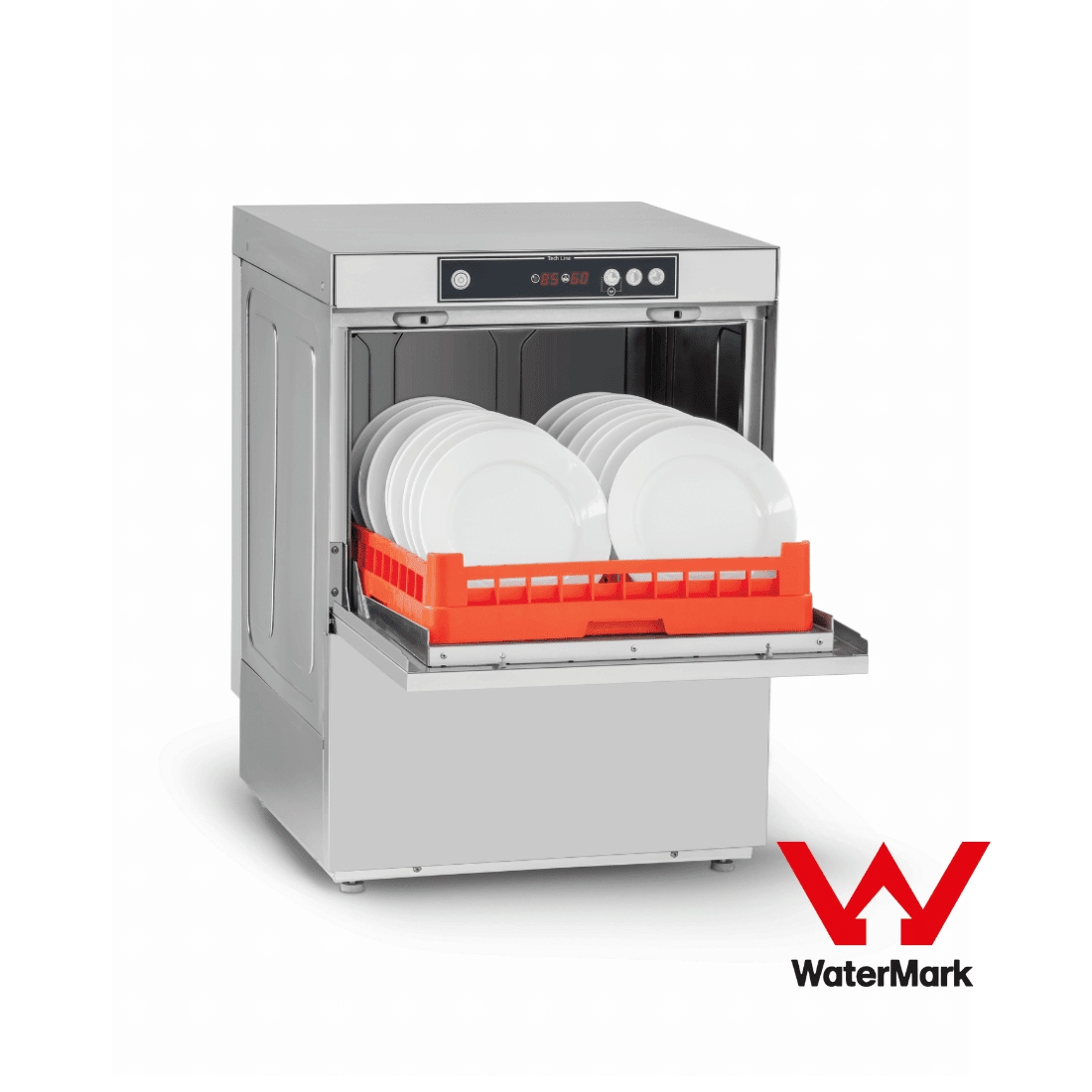

Asber Tech Line Underbench Dishwasher - GE-500BDD

The Asber GE-500BDD Tech Line is a Spanish-built underbench dishwasher rated for 30 baskets per hour through a 500 × 500 mm wash rack — the standard size that fits dinner plates, mid-sized pans, and a separate cutlery basket per cycle. With an electronic control panel offering 3 cycle times (90/120/180 seconds), built-in rinse aid + detergent dispensers, and an integrated drain pump for flexible install, it's a solid all-rounder for cafés, restaurants, and small bars where a glasswasher isn't enough.

Key features

• 30 baskets per hour through 90/120/180-second cycles — covers most cafés and restaurants up to ~100 covers per service
• 500 × 500 mm wash rack — standard size, fits dinner plates and pans (2 racks supplied + 1 cutlery basket)
• Built-in rinse aid + detergent dispensers + drain pump — automated dosing and flexible drain routing in one unit
• Thermostop sanitisation + soft start — 60 °C wash / 85 °C rinse cycle meets commercial sanitisation standards
• Watermark certified — passes Australian plumbing certification for commercial install
• 15A single-phase power — note: not standard 10A; dedicated 15A circuit required (most commercial sites already have one)

Specifications

Venue suitability

Suited to cafés, mid-sized restaurants, small pubs/bars, function rooms, and venues doing 60–120 covers per service. The 500×500 mm rack handles dinner plates, lunch plates, mugs, bowls, and standard cutlery. For glass-only operations or higher throughput, see our glasswasher and pass-through dishwasher ranges.

Installation notes

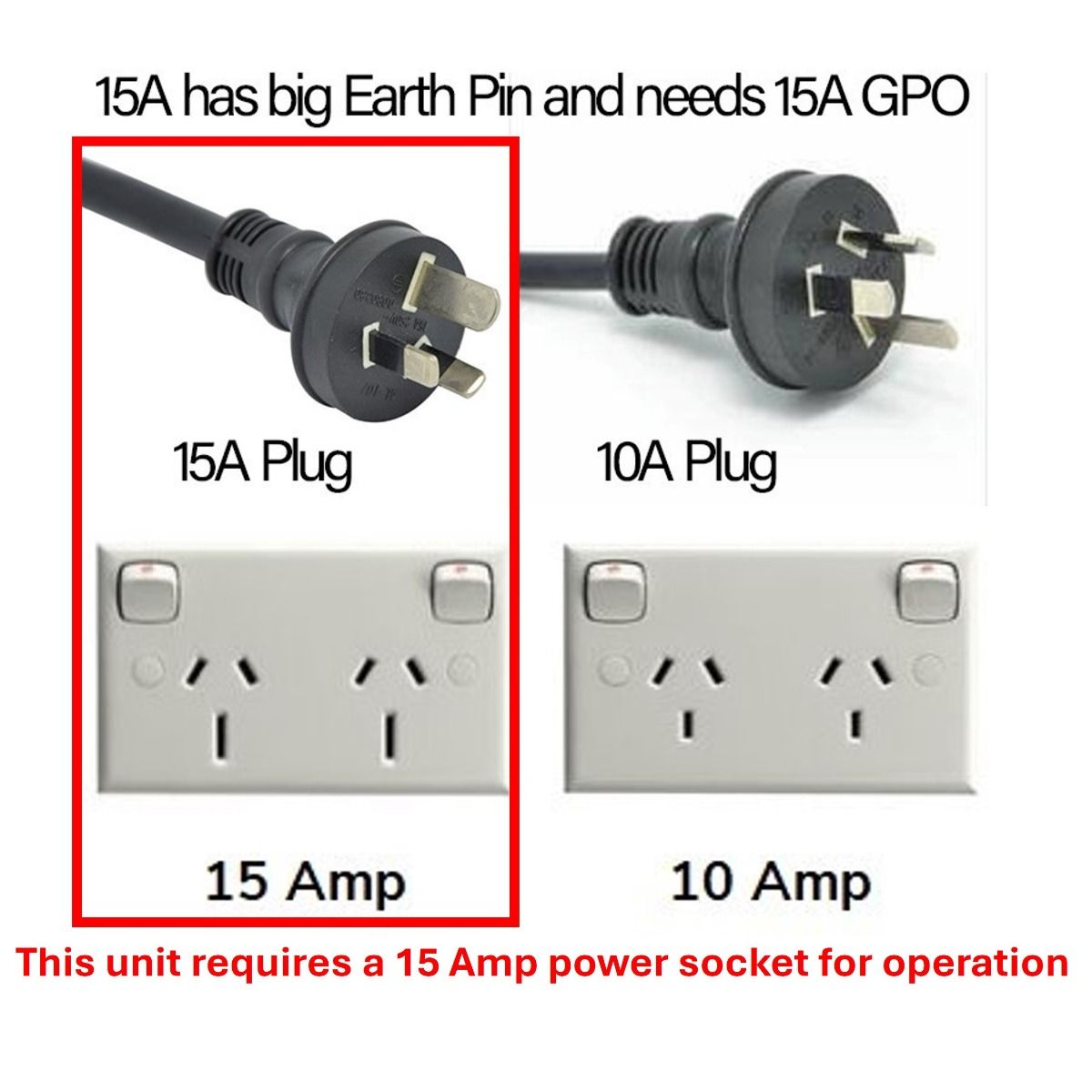

The GE-500BDD requires a 15A single-phase circuit — not a standard 10A wall outlet. Most commercial venues already have 15A available; if not, an electrician needs to install one. Watermark certification means a plumber can connect water supply and waste without additional approvals. The integrated drain pump lets the waste line be routed flexibly under the bench. Door clearance is 320 mm — confirm bench-line layout allows the door to fully open.

What's in the box

• 1 × Asber GE-500BDD underbench dishwasher
• 2 × 500 × 500 mm wash baskets
• 1 × cutlery basket
• Manufacturer documentation + Watermark certification

Delivery & warranty

Ships Australia-wide on parcel-crate or pallet freight depending on destination. 2 years parts and labour warranty as standard. Claims handled through our Granville NSW base; Asber parts are stocked locally for fast turnaround.

Frequently asked questions

Q: Is 30 baskets per hour enough for my venue? A: As a guide: 30 baskets/hour suits venues serving up to 100–120 covers per service. Each basket holds approximately 18 dinner plates or a mixed plate-and-mug load. For higher throughput, look at a 60-basket/hour pass-through dishwasher.

Q: Why does it need 15A power instead of standard 10A? A: Underbench dishwashers heat water to 85°C for the rinse cycle, which draws 2.8 kW from the boiler element. That puts the total load above what a standard 10A wall outlet can sustain. Most commercial kitchens already have 15A circuits available; if not, a licensed electrician needs to install one before delivery.

Q: What's the difference between this and an underbench glasswasher? A: Glasswashers (e.g. Blastwash AT40U) have a smaller 400×400 mm rack and are tuned for delicate, fast cycles for glasses only. The GE-500BDD has a larger 500×500 mm rack, longer cycle options, and stronger wash power — built for plates, pans, and mixed dishware. Bars typically run both: glasswasher for glasses, dishwasher for plates.

Q: Does it have a built-in detergent dispenser, or do I add it manually? A: The GE-500BDD has built-in rinse aid AND detergent dispensers — both auto-dose per cycle. You just top up the chemical reservoirs as needed. This avoids manual handling per cycle and improves consistency.

Q: How does the drain pump help installation? A: The integrated drain pump pushes wastewater out actively, so the drain line can be routed up and over to a sink waste or floor drain — useful when the original drain location isn't directly under the unit. Standard gravity-drain dishwashers can't do this.

Q: Is this Watermark certified for Australian plumbing? A: Yes — the GE-500BDD ships with Watermark compliance, which means plumbers can connect water and waste without raising additional approvals with local councils. The certification covers commercial installation in Australia.
