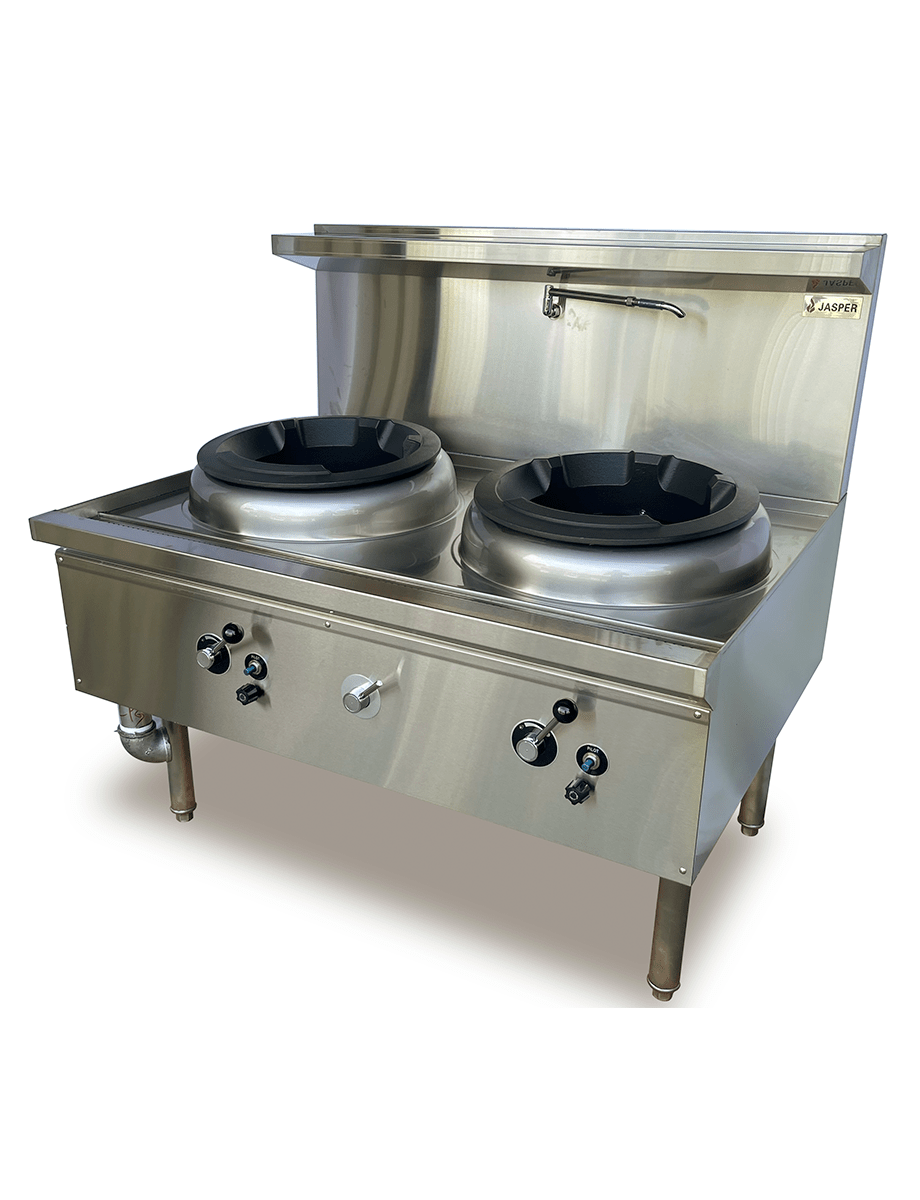

Jasper Double Gas Wok Burner (Duckbill Burner) JA-2DB

The Jasper JA-2DB is a double gas wok burner using duckbill burners, taking two woks at once across a 1200 mm range. Duckbill burners are specified for even heat distribution, which is what a wok needs — heat up the sides, not just a point under the base. Supplied in two gas builds, natural gas or LPG. At 125 kg it is a fixed installation requiring a licensed gasfitter.

Why operators choose the JA-2DB-N-SM

• Two woks at once — two dishes running in parallel instead of sequentially - on a wok menu that is the difference between a 10-minute and a 20-minute ticket time
• Duckbill burner technology — specified for powerful, even heat distribution, which is what gives fast and repeatable results on a wok rather than a hot spot in the middle
• 1200 mm across two stations — two full wok positions with working space between them, in a footprint that fits most lines
• Natural gas or LPG builds — order to match the supply your site already has - each is a separate SKU and they are not interchangeable
• Built for continuous commercial duty — robust construction for the sustained high heat of a wok line, not intermittent use
• 125 kg — mass is what keeps a wok range stable under a heavy wok and a hard toss
• Licensed gasfitter installation — a fixed gas appliance is commissioned properly rather than connected on arrival

Specifications

Gas options

Venue suitability

The JA-2DB suits Asian restaurants, food courts, function kitchens and caterers running a wok line where two stations are genuinely used. Match the gas build to your site's supply when ordering — each is a separate SKU and cannot be swapped after delivery.

See the full woks range or browse every Jasper model we carry.

Installation & delivery

This is a gas appliance. It must be installed, connected and commissioned by a licensed gasfitter to the relevant Australian standards — it is not a connect-on-arrival unit. Allow 1200 x 900 mm of floor and confirm extraction over a wok range against your local requirements — wok burners produce substantial heat and fume, and a standard-depth canopy may not capture what a wok throws forward. At 125 kg it is a multi-person move and a fixed position once connected.

Frequently asked questions

Q: Which gas type should I order?

Match your site's existing supply - natural gas (JA-2DB-N-SM) for a mains-connected kitchen or LPG (JA-2DB-L-SM) for bottled gas. Each is a separate SKU, they are not interchangeable, and your gasfitter should confirm the connection before installation.

Q: What gas output does it produce?

Our product data does not record one. The power field on this product holds the fuel type rather than an MJ/h rating, and no output figure appears anywhere in the source - so rather than estimate it, contact our team if you need the rating for a gas sizing calculation. Your gasfitter will confirm the connection requirement on site.

Q: Can I install it myself?

No. This is a gas appliance and must be installed, connected and commissioned by a licensed gasfitter to the relevant Australian standards.

Q: What is a duckbill burner?

The burner is specified for even heat distribution rather than concentrating output at a single point. On a wok that matters, because you are cooking against the sides of the pan as much as the base.

Q: What extraction does a wok range need?

Two wok burners at full output produce significant heat and fume. Extraction is set by your local regulations and kitchen design - and note that a standard 1000 mm deep canopy may not capture what a wok throws forward, so a deeper Asian-series canopy is often specified. Confirm with your fit-out.

Q: What warranty does the JA-2DB-N-SM come with?

Covered for 12 months. The product data does not state a parts-and-labour split for this model, so contact our team for the exact terms before you order. Terms vary by product — see our warranty information page for full details.
