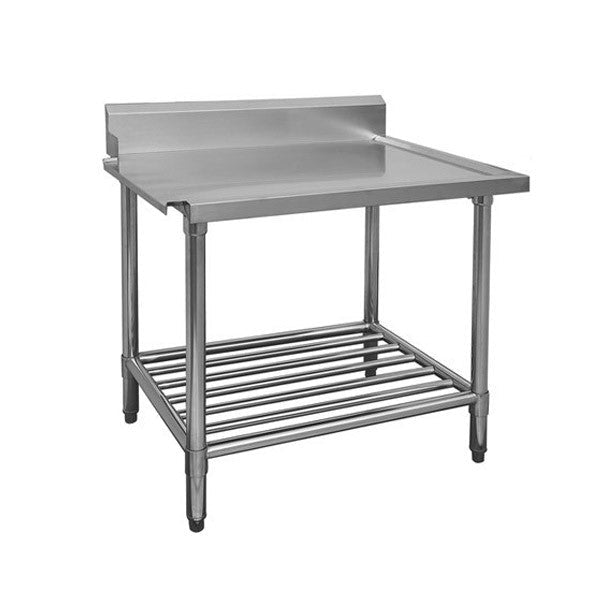

Modular Systems 304 Grade All Stainless Steel Dishwasher Bench Left Outlet

All Stainless Steel Dishwasher Bench Left Outlet
1800mm wide
• 700 mm deep x 900 mm high
• specially designed for quick & simple assembly
• come with instruction manual & tools
• supplied flat-packed for ease of transport
• 4 legs per bench - 2100 & 2400 mm wide benches have 6 legs
• 1.2 mm S/S
Splashbacks
• Stainless Steel backed • 180 mm high; 30 mm thick
• bevelled • fully enclosed
Legs
• 1.2 mm S/S; 42 mm Ø
• fully adjustable S/S polished disc feet that match the legs perfectly
• castor kits available (lockable)
Benchtops
• 1.2 mm material; SUS304 (18/8)
• lined with XPS board, 15 mm thick & S/S panel
• special S/S ˜U channel reinforcements under
- as the bench size increases so does the number of channels

Note
LEFT side sink inlet bench
When facing the bench the dishwasher inlet & sinks are on the left side.
RIGHT side sink inlet bench
When facing the bench the dishwasher inlet & sinks are on the right side.

Product Dimensions: 600~1800(W) x 700(D) x 900(H)mm
