Simcohood DH1800-750D Ductless Exhaust Hood System 1800mm

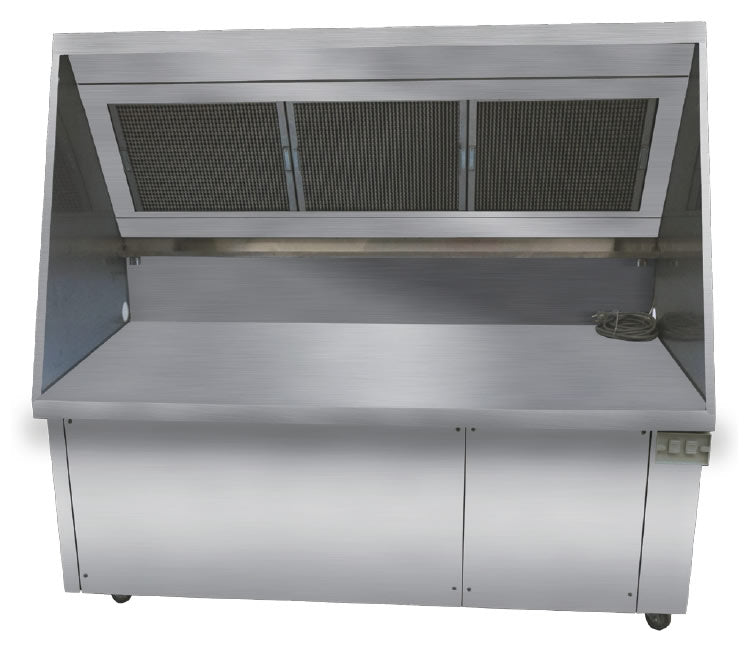

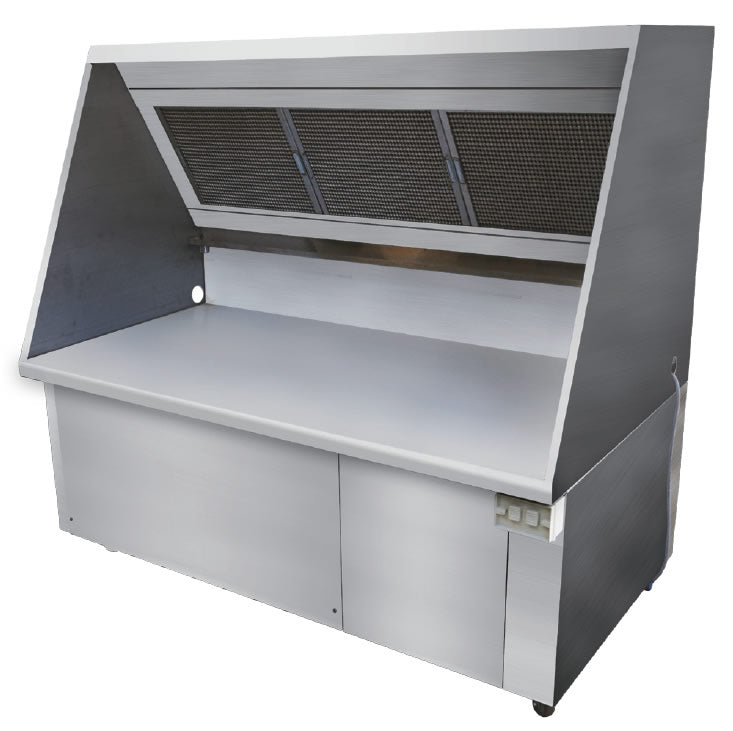

The Simcohood DH1800-750D is a ductless (recirculating) exhaust hood system, 1800 mm wide x 750 mm deep x 1400 mm high with a 620 mm bench height. It filters cooking fumes and returns the air to the room, so no duct to the outside is needed - and it is made for electric appliances only, up to 8 kW each, 3 or 4 of them under the canopy.

Why operators choose the DH1800-750D

• No external ducting — filters and recirculates, so there is no roof penetration or duct run - the reason to choose ductless where ducting is impractical or not permitted by the building

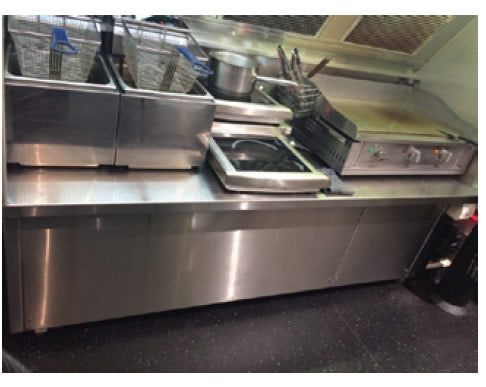

• Electric appliances only, up to 8 kW each — fits 3 or 4 appliances and can handle a 3-phase unit; it is not for gas appliances

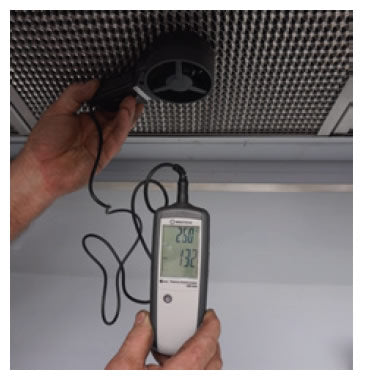

• 400-500 litres per second — from a quiet 334 W motor drawing only 1.4 A

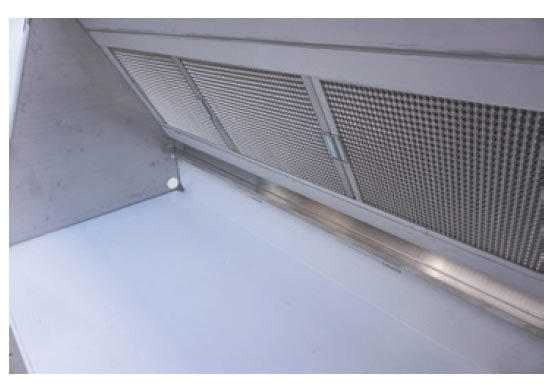

• Three-stage filtration — 3 removable honeycomb filters (380 x 455 mm), a polyester filter and a carbon filter, all included
• 304 stainless steel — fully welded corners and LED lighting over the cooking area
• On legs and castors — heavy-duty legs and heavy-duty castors are both included

Specifications

Venue suitability

Ductless extraction suits sites where a ducted canopy cannot go: leased premises that will not allow a roof penetration, food courts, shopping-centre tenancies, office canteens and kiosks running an all-electric line. It is not a substitute for a ducted canopy over gas cooking. CKA also lists the DH1800-750; Simco's current catalogue lists the D model, so ask us if you are comparing the two.

Compare our ductless exhaust canopies, browse every commercial exhaust canopy, or see everything we carry from Simcohood.

Installation & delivery

The DH1800-750D arrives on its legs and castors with all filters fitted. Before ordering, confirm that every appliance going under it is electric and rated at no more than 8 kW, and that the overall 1800 x 750 x 1400 mm unit fits the space. Budget for filter changes as a running cost: the polyester filter every 8-12 weeks and the carbon filter every 12 months. Check with your local council or building manager whether recirculating extraction is accepted for your cooking.

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: Can I put gas appliances under this hood?

No. Simco specifies the hood for electrical appliances up to 8 kW each. Gas cooking needs a ducted canopy.

Q: Does it need ducting to the outside?

No. It is a recirculating hood that filters the air and returns it to the room.

Q: How many appliances fit under it?

Simco records 3 or 4 appliances, each up to 8 kW, and it can handle a 3-phase unit. The hood is 1800 mm wide and 750 mm deep.

Q: How often do the filters need changing?

The polyester filter every 8 to 12 weeks and the carbon filter every 12 months. The three honeycomb filters are removable for cleaning.

Q: How is the DH1800-750D different from the DH1800-750?

Simco's current catalogue lists the DH1800-750D; our records do not document a specification difference between the two. Contact us and we will confirm before you order.

Q: What warranty applies?

12 months parts and labour, Australia-wide. See our warranty information page for details.
